SPECIFICATIONS
Brand Name: WZRELB
Type: DC/AC Inverters
Size: 364*248*95MM
Output Frequency: 50HZ or 60HZ
Output Type: single
is_customized: Yes
Output Current: depends on the voltage
Output Power: 3000 Watt-6000 Watt
Weight: 5.18KGS
Model Number: RBP-3000S-LED
Certification: CE
Certification: FCC
Inverter Type: Off Grid DC to AC Inverters Converters Transformer
Efficiency: >90%
Color: Black
Socket Type: Full Type
Packing Type: Carton Packing
Shell Type: Iron Shell
Output Voltage: 100V,110V,120V,220V,230V,240V
Input Voltage: 12V, 24V, 36V, 48V, 60V,72V, 96V, 110V
Input Voltage Range: 10-15VDC or 21-30VDC or 42-60VDC or 100-120VDC
Energy Type: Solar Power, Battery, Car Power,Wind Power

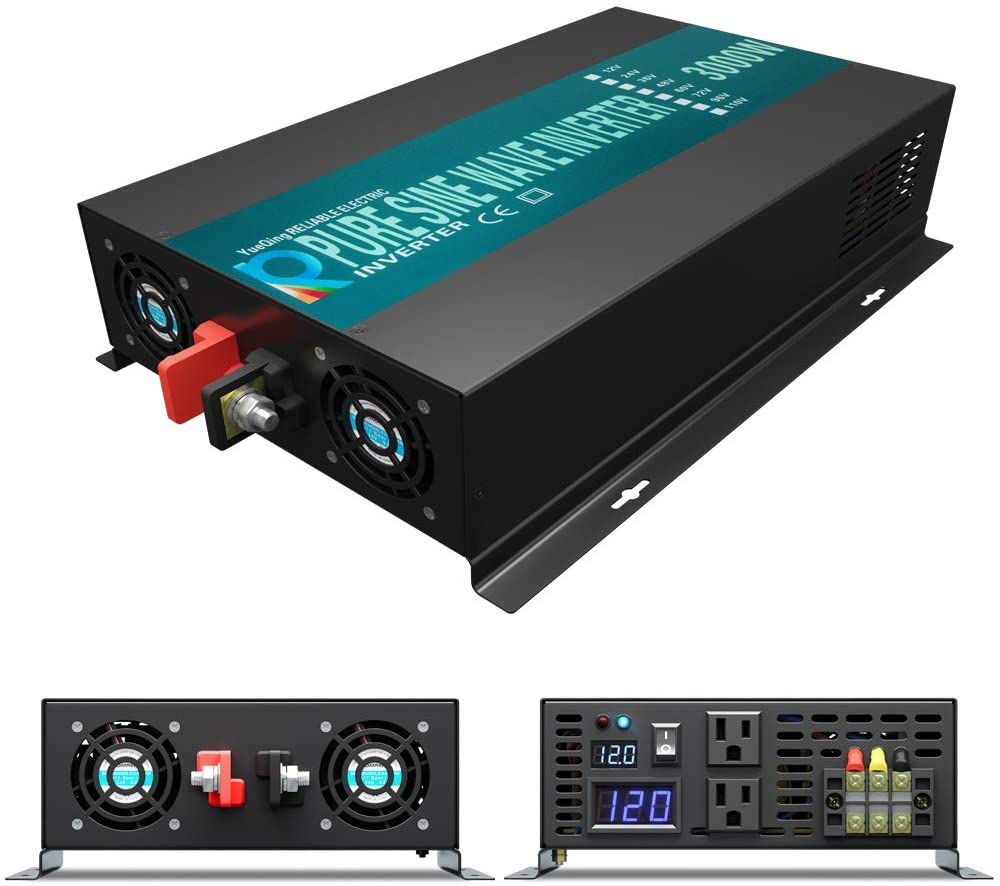

CE/EMC Certified, High Efficiency Full Power 6000 Peak Power 3000W Off Grid Pure Sine Wave Solar Power Inverters Converters DC TO AC Voltage Transformer LED Display Iron Shell
Applications of Our Customers:
Product Detail Parameters
|
DC Voltage |
12V or 24V or 36V or 48V or 60V or 72V or 96V or 110V |
|
Voltage Range |
10-15VDC or 21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC |
|
NO Load Current Draw |
<1A |
|
Efficiency |
>90% |
|
DC Connector |
Cables With Clips or Car Adaptor |
|
AC Voltage |
100/110/120VAC or 220/230/240VAC |
|
Continuous Power |
3000W |
|
Surge Power |
6000W |
|
Waveform |
Pure Sine Wave |
|
Frequency |
50HZ or 60HZ |
|
AC Regulation |
3% |
|
Low Voltage Alarm |
10DC±0.5V or 20.5DC±1V or 32.5VDC±1V or 44.5VDC±1V or 55.5VDC±1V or 68VDC±1V or 92VDC±1V or 105VDC±1V |
|
Low Voltage Shut Down |
9.5DC±0.5V or 19.5DC±1V or 31VDC±1V or 42VDC±1V or 55VDC±1V or 60VDC±1V or 84VDC±1V or 100VDC±1V |
|
Over Load |
Shut Off Output |
|
Over Voltage Shut Down |
15.5V or 30.5V or 45.5V or 55.5V or 75.5V or 90.5V or 110.5V or 120.5V |
|
Over Thermal |
Shut Off Output Automatically |
|
Fuses |
Short Circuit |
|
Working Temperature |
Between -10centi and +50centi |
|
Working Humidity |
20%~90%RH non-condensing |
|
Storage Temperature |
Between -30centi and +70centi |
|
Start |
Soft Start |
|
Cooling Ways |
Cooling Fan |
|
Total Harmonic Distortion THD |
<5% |
|
Machine Size(mm) |
364*248*95 |
|
Packing Size(mm) |
450*320*170 |
|
Net Weight(kgs) |
5.2KG |
|
Gross Weight(kgs) |
6.5KG |
|
Packing Type |
Carton Packing |
Product Details:
