SPECIFICATIONS



Brand Name: ALLOYSEED



Hign-concerned Chemical: None

Style: Portable

Function: Built-In Speaker

Type: AM / FM

Package: Yes

Body Material: Metal

Certification: none

Model Number: Full Band Radio Receiver

Power Supply: Rechargeable Battery Pack

Screen: Yes

Function: Built-In Speaker

Type: AM / FM

Style: Portable

FM: 64 functions 108MHz/RDS function

LW: 153khz 500khz

MW: 520khz 1710khz

SW: 1730khz 30000khz

SSB: 1730khz 30000khz

Antenna interface: BNC









ATS25X2 Full-band Radio FM/LW/MW/SSB Shortwave Frequency Radio Receiver Scanner 2.4inch Touchscreen Portable FM Radio Si4732 Chip APP Network WIFI Configuratio with Spectrum Scanning

Feature:

1.Spectrum Scanning Function: The full-band radio features a spectrum scanning function, allowing users to explore and find the perfect frequency band for their needs. This makes tuning and finding channels a breeze, enhancing the overall listening experience.

2.Adjustable Backlight and Battery Display: The all band radio  has adjustable backlight brightness and a backlight off option, making it suitable for any lighting condition. It also displays the battery voltage and battery percentage, allowing the user to track power consumption and charge when needed.

3.High Precision and Durability: The DSP receiver is equipped with a high-precision, long-life rotary encoder knob. This not only ensures accurate tuning but also promises a lasting performance, making it a reliable choice for users.

4.Connectivity and Information Display: The FM radio reiver  offers FM RDS information display and allows for WiFi configuration through a mobile app. Users can stay informed and quickly set up their device for optimal performance.

5.4G Antenna Interface and Customizable Settings: With an external 4G antenna interface, the shortwave frequency radio receiver scanner  ensures strong signal reception. Additionally, it displays network-synchronized time and allows for customized time zone settings. It also supports paid upgrades to Russian firmware (key authorization needed, purchase separately), providing versatility for global users.

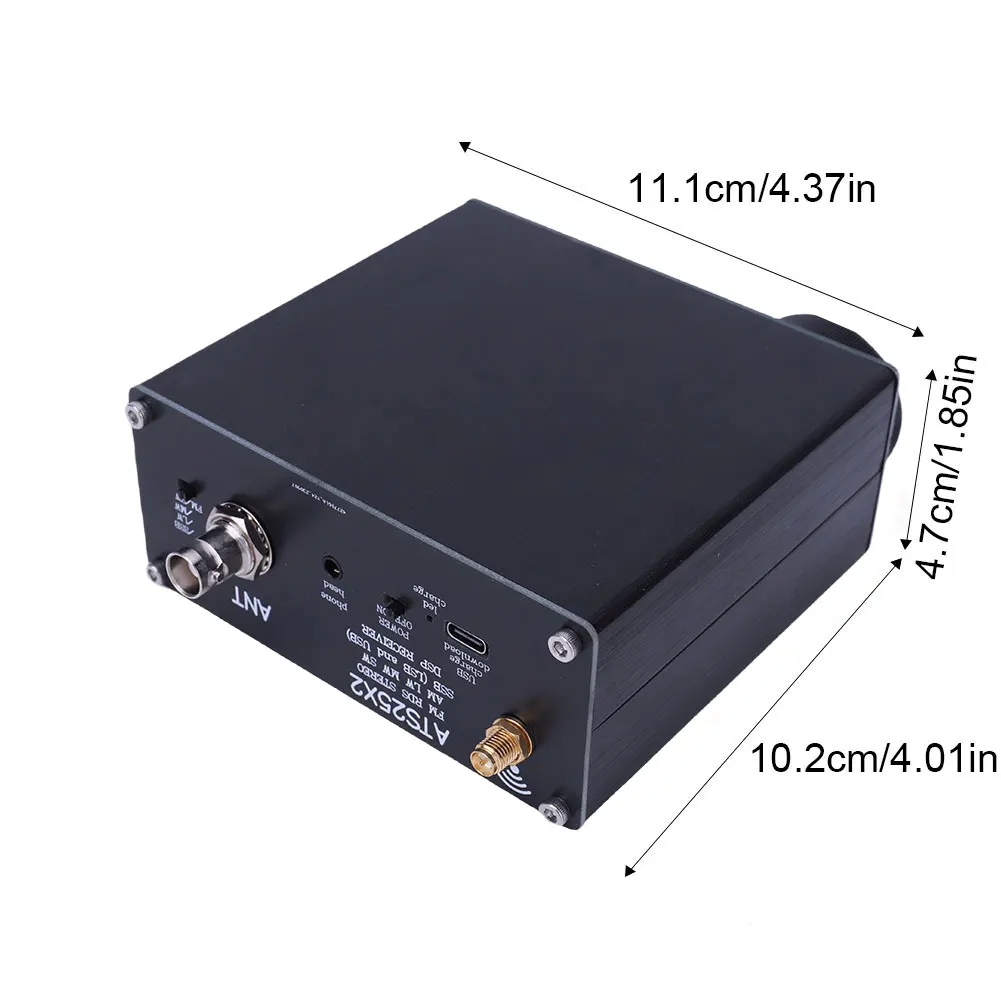

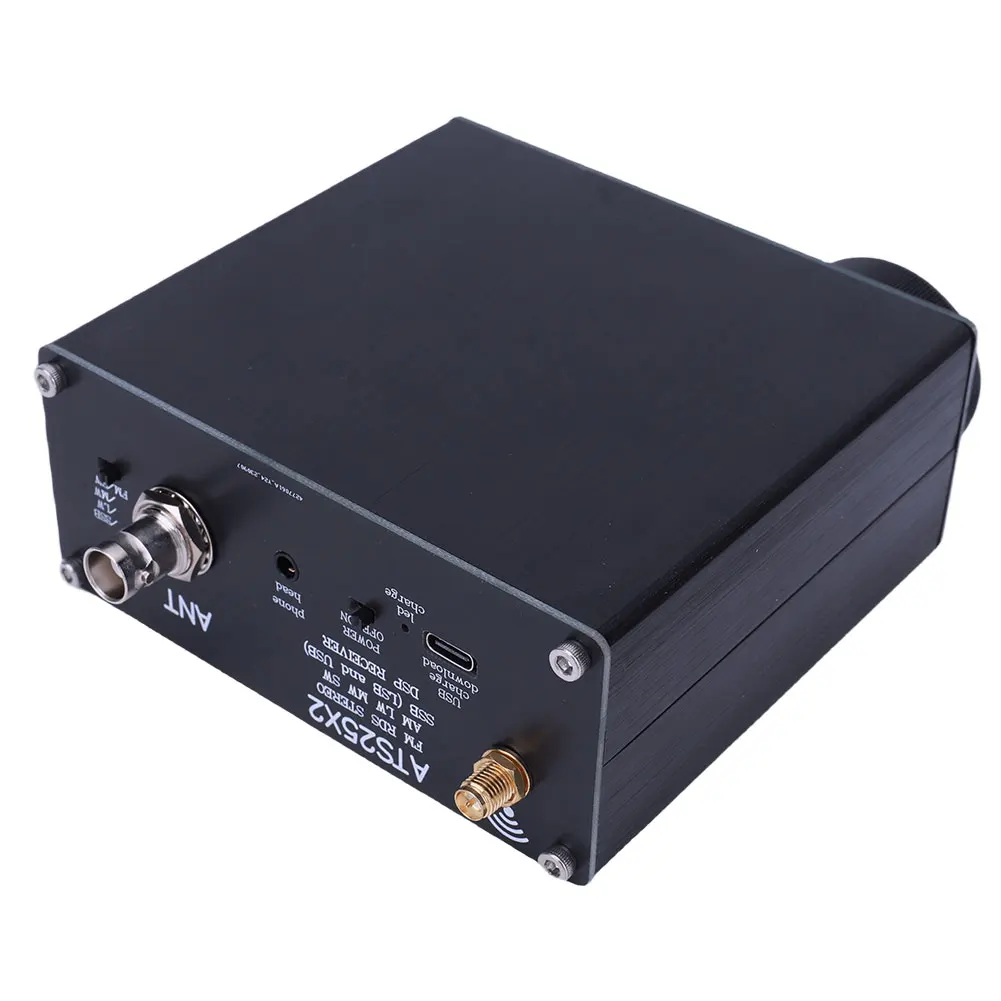

1: type-c interface: download program, 5V/2A charging

2: 3.5MM audio output interface, in FM mode you can use the headphone wire as an FM antenna

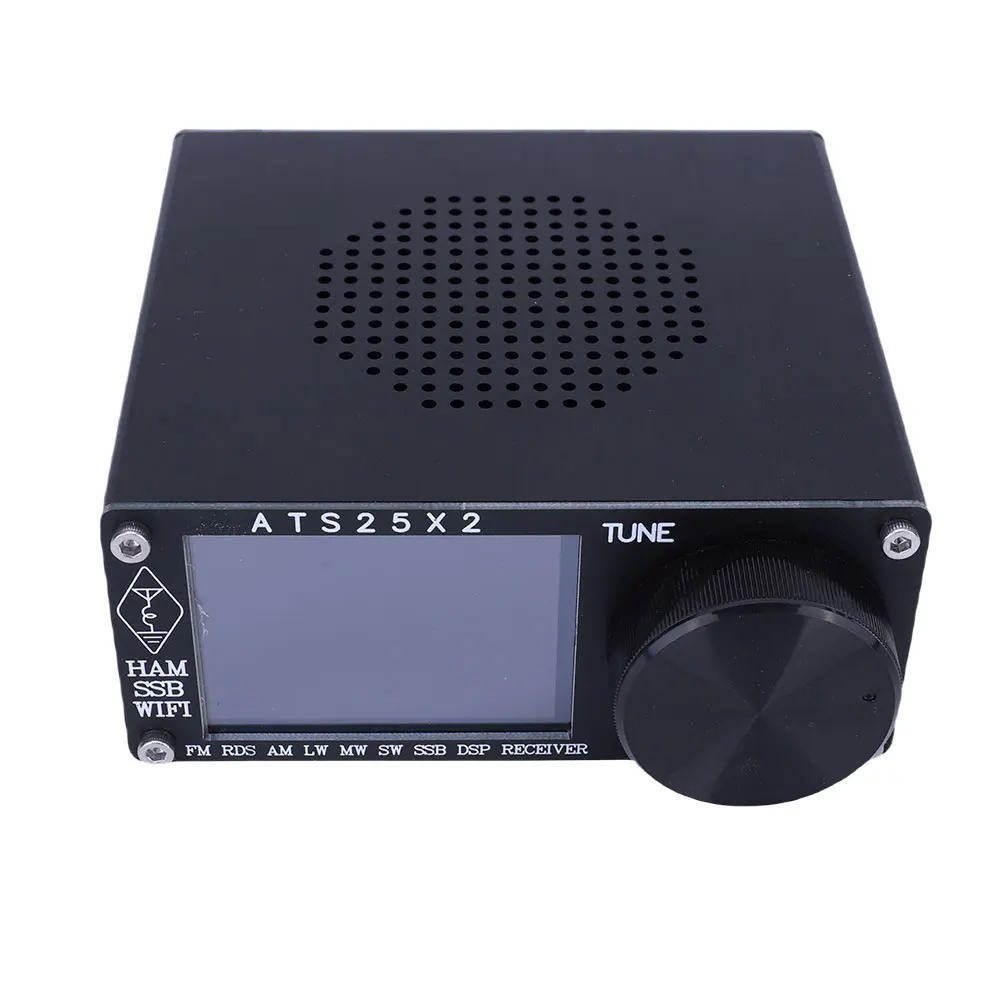

3: Display screen, used to display radio information

4:Telescopic antenna

5: The knob can be rotated to adjust the frequency: it can be pressed to enter the menu.

6: External antenna interface, which can connect various external antennas

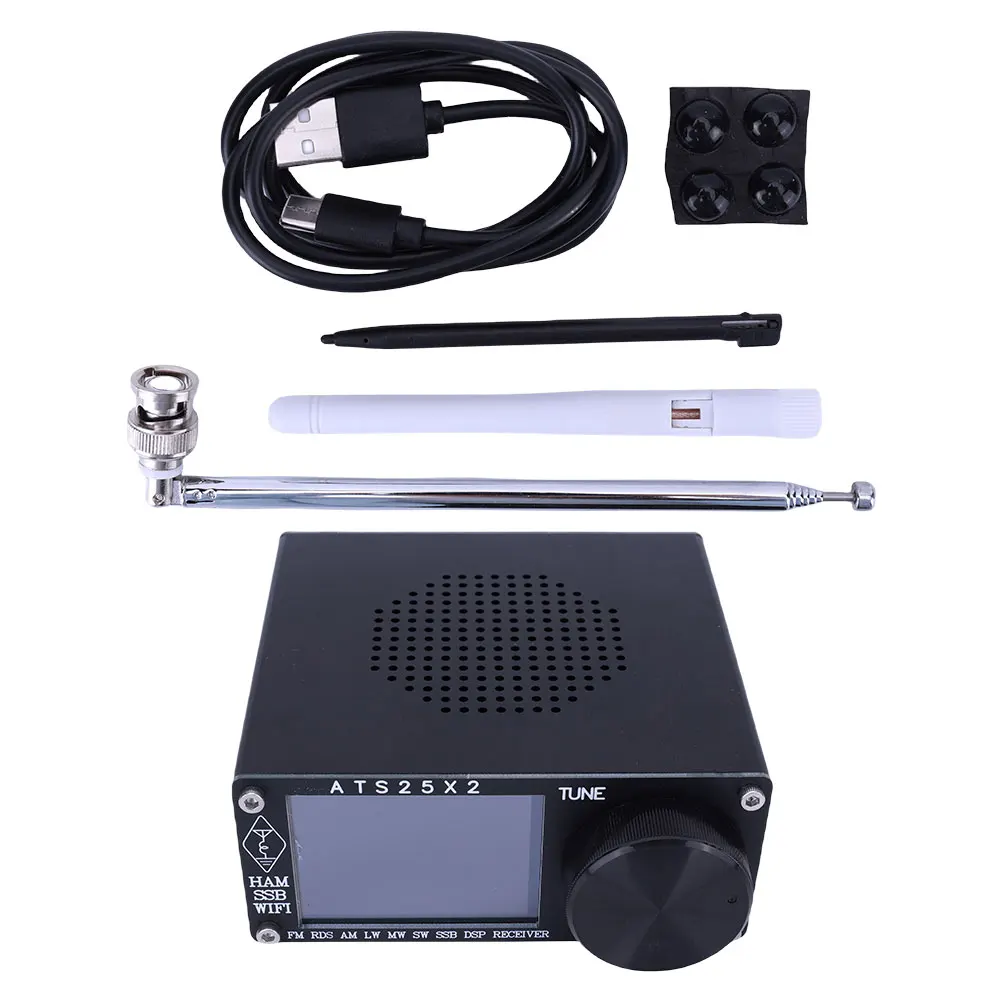

1 x ATS25X2 Full Band Radio Receiver
