SPECIFICATIONS



Brand Name: NoEnName_Null

Subwoofers Types: Enclosed Subwoofer Systems

Item Type: SUBWOOFERS

Voltage: 12V

Item Weight: 4.7

Color Name: black

Material Type: Aluminum alloy

Rated power: 600W

Frequency response: 20 Hz-150 Hz

Impedance: 4Ω

Voltage: 12V

Signal to noise ratio: > 90 dB

Material: Aluminum alloy

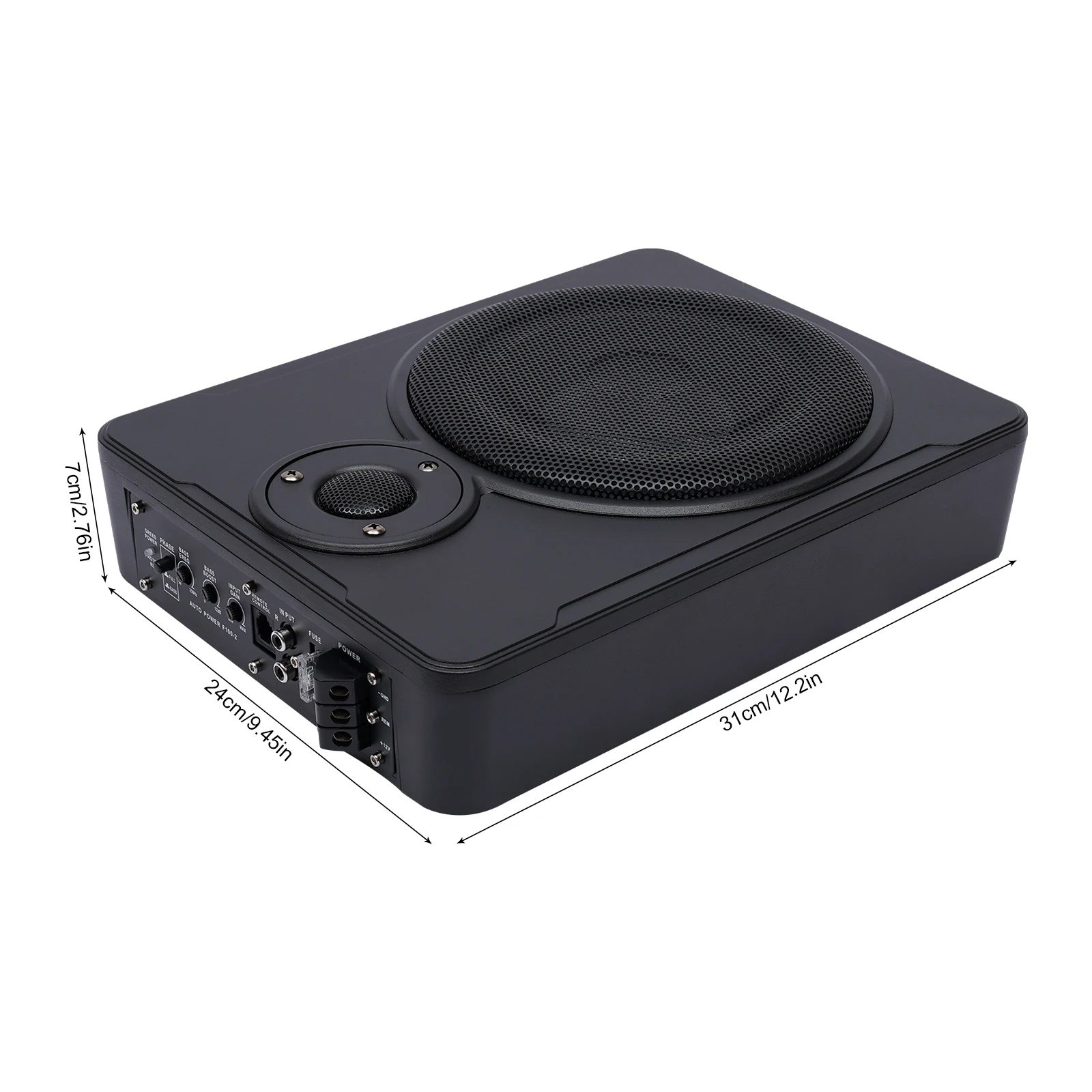

Size: 320*240*65mm (12.6*9.4*2.6in)

Weight: 4kg

Feature: Easy installation

Speaker Size: 8in

Warranty: 2 Years

RMS watt: 200W

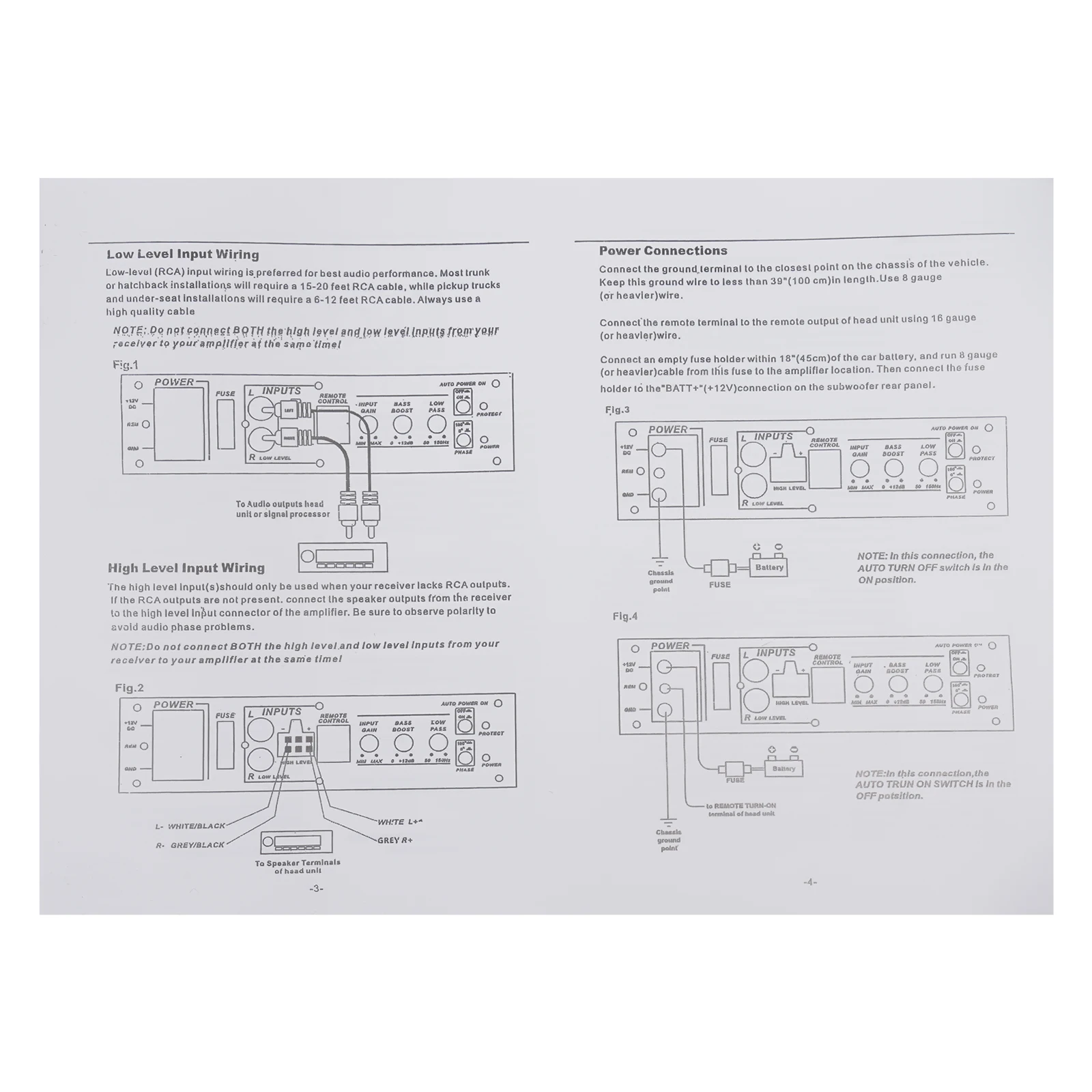

Installation Instructions



Low Level Input Wiring:

Low-level (RCA) input wiring is preferred for best audio performance. Most trunk or hatchback installations will require a 15-20 feet RCA cable, while pickup trucks and under-seat installations will require a 6-12 feet RCA cable. Always use a high quality cable.



High Level Input Wiring:

The high level input(s) should only be used when your receiver lacks RCA outputs. If the RCA outputs are not present, the speaker outputs need to be connected from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.



NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time.

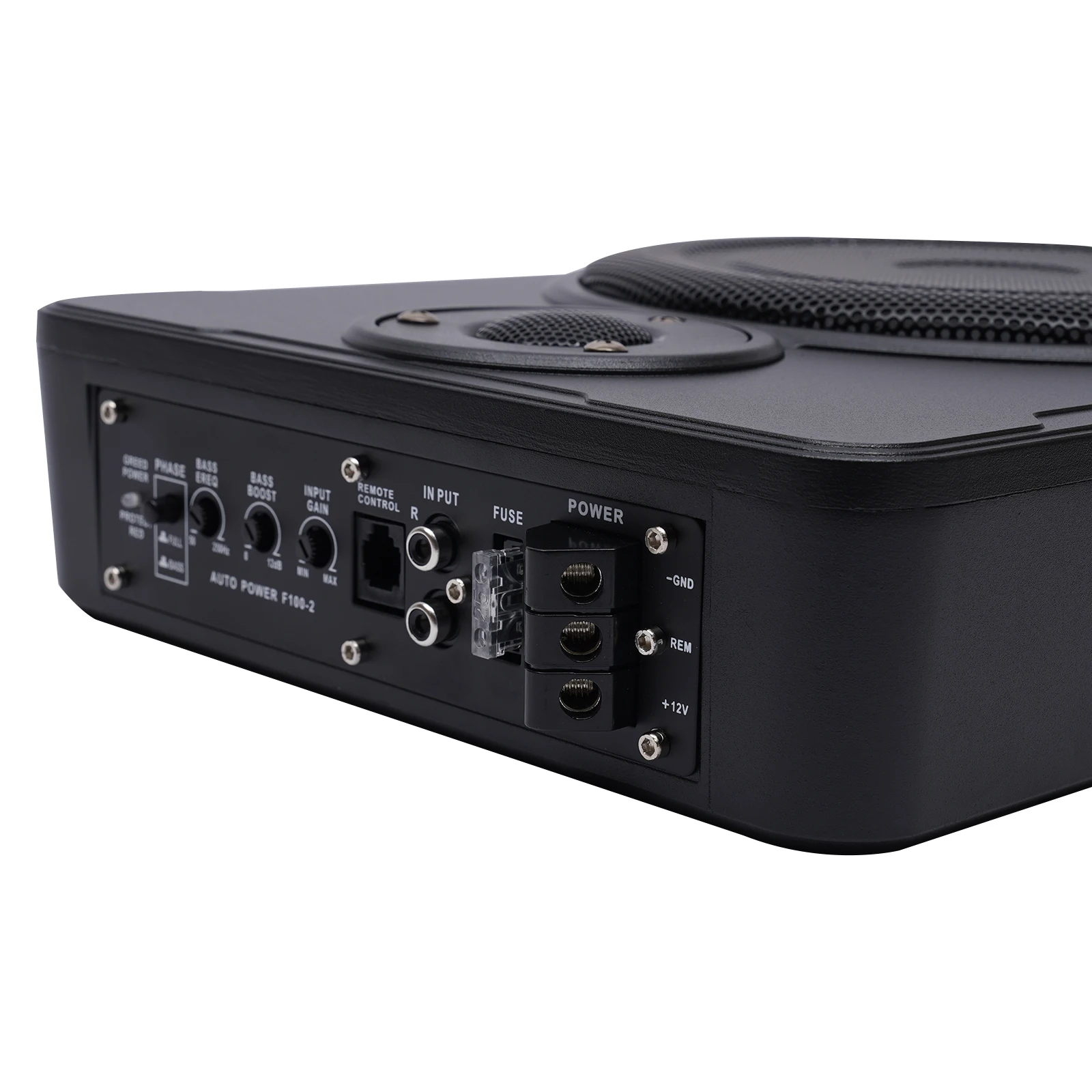

Power Connections:

1. Connect the ground terminal to the closest point on the chassis of the vehicle.

2. Keep this ground wire to less than 39''(100 cm)in length. Use 8 gauge (or heavier) wire.

3. Connect the remote terminal to the remote output of head unit using 16 gauge (or heavier) wire.

4. Connect an empty fuse holder within 18'' (45cm) of the car battery, and run 8 gauge (or heavier) cable from this fuse to the amplifier location. Then connect the fuse holder to the"BATT+"(+12V) connection on the subwoofer rear panel.
